- Цена за 1 метър / 8 USD (моля, свържете се с нас за точни размери)
- PTFE - 50 Ohm - double screen
- Centre conductor Steel- Copper+Silver plated Strand-07 0.54 mm
- Dielectric PTFE
- Outer conductor Copper, Silver plated Braid, 96 % 2 mm
- Outer conductor Copper, Silver plated Braid, 91 % 2.5 mm
- Jacket FEP RAL 8015 - br 3 mm +/- 0.1
Electrical Data
- Impedance 50 ohm +/- 2 ohm
- Max. operating frequency 6 GHz
- Capacitance 97 pF/m
- Velocity of signal propagation 69 %
- Signal delay 4.86 ns/m
- Insulation resistance ≥ 1 x 108 Mm
- Min. screening effectiveness > 80 dB (up to 6 GHz)
- Max. operating voltage 0.85 kVrms (at sea level)
- Test voltage 1.7 kVrms (50 Hz/1 min)

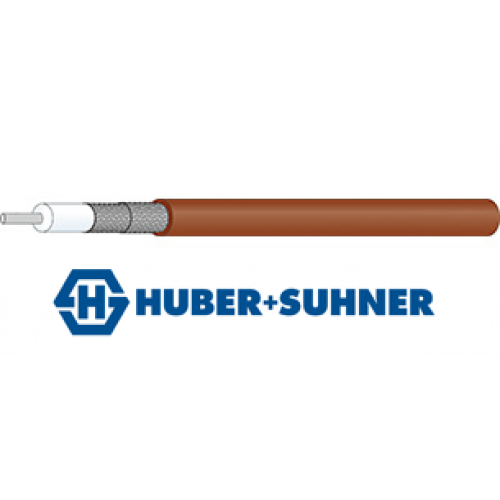

Висококачествен коаксиален кабел Huber+Suhner K 02252 D 50+
- Код: 1182
- Модел: K-02252-D
- Наличност: В наличност
-
16.00лв.
- с ДДС: 19.20лв.
