ST815 Laser Source can support stable laser signal on It supplies the high performance laser source for field test and lab project development. With large LCD display with backlight and friendly operation interface, high stability of output power and quite stable output wavelength, it is an ideal instrument for optical network installation, trouble shooting, maintenance and other optical fiber related systems.
- Handhold, easy to operate
- Continuous light, modulated light output
- Output double wavelength through single tie-in
- High stabilization
- Support FC、SC、ST adapter
- Auto 10minutes shut off function
- Emitter type: FabryPerot LD/DFB-LD
- Output wavelength switch (nm): 1310±20nm, 1550±20nm
- Spectral width (nm): ≤5
- Output optical power (dBm): ≥-7
- Optical Output Mode: CW/270Hz, 1kHz, 2kHz
- Optical Interface: FC
- Power Stability (dB) (Short time): ≤±0.05/15min
- Power Stability (dB) (Long time): ≤±0.1/5h
- Big LCD, intuitive, easy to use
- Ni-MH rechargeable battery
- Working temperature (℃): from 0 to -40
- Storage temperature (℃): from -10 to -70
- Weight (kg): 0.22
- Dimension (mm): 160×76×28
- Battery: 9V/160mAh NI-MH rechargeable battery

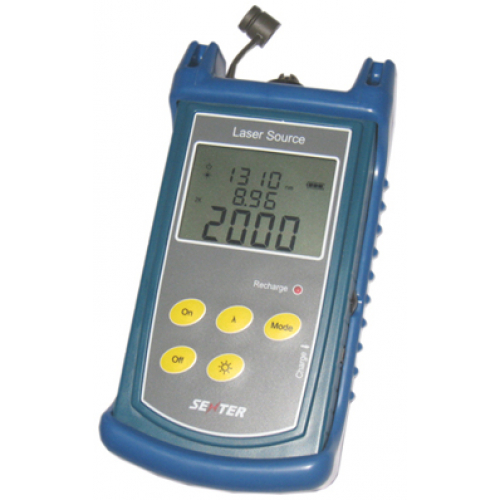

Stable Laser Source ST815
- Product Code: 1040
- Product Model: ST815
- Availability: Out Of Stock
-
258.00лв.
- Inc Tax: 309.60лв.
