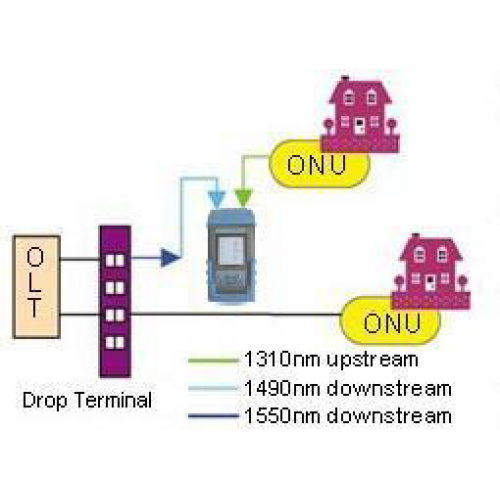

- Test 3 wavelengths power of PON system synchronously: 1490nm, 1550nm, 1310nm
- Suitable for all PON network (GPON, EPON)
- User-defined Threshold Sets
- Supply 3 groups of threshold values; analyze and display pass/fail status
- Relative value (differential loss)
- Save and upload the records to computer
- Set threshold value, upload data, and calibrate wavelength through management software
- 32 digits CPU, easy to operate, simple and convenient
- Auto power off, auto backlight off, low voltage power off
- Cost efficient palm size designed for field and lab testing
- Easy-to-use interface with large display for easy visibility
Specifications
-
Standard wavelengths
- 1310 (upstream)
- 1490 (downstream)
- 1550 (downstream)
- Pass zone(nm) 1260～1360 1470～1505 1535～1570
- Range(dBm) -40～+10 -45～+10 -45～+23
- Isolation @1310nm(dB) >40(1490) >40(1550)
- Isolation @1490nm(dB) >40(1310) >40(1550)
- Isolation @1550nm(dB) >40(1310) >40(1490)
Accuracy
- Uncertainty(dB) ±0.5
- Polarization Dependent Loss (dB) <±0.25
- Linearity(dB) ±0.1
- Through Insertion Loss(dB) <1.5
- Resolution 0.01dB
- Unit dBm / xW
General Specifications
- Storage number 99 items
- Auto backlight off time 30 30 seconds without any operation
- Auto power off time 10 minutes without any operation
- Аlkaline batteries 1,5V AA
- Continuous working 18 hours for Lithium battery; about 18 hours for dry battery too
- Working temperature -10~60℃
- Storage Temperature -25~70℃
- Dimension (mm) 200*90*43
- Weight (g) About 330

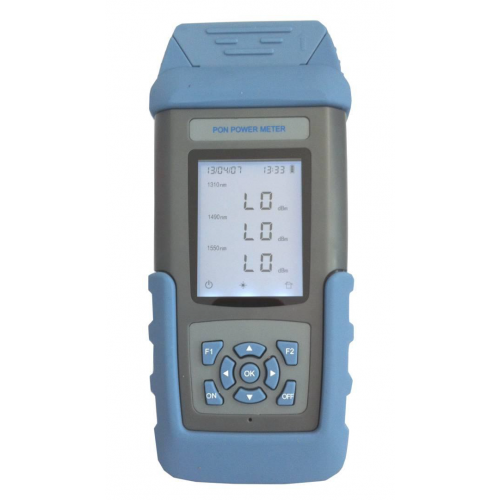

PON power meter ST805C-A
- Product Code: 1038
- Product Model: ST805C-A
- Availability: Out Of Stock
-
396.00лв.
- Inc Tax: 475.20лв.
