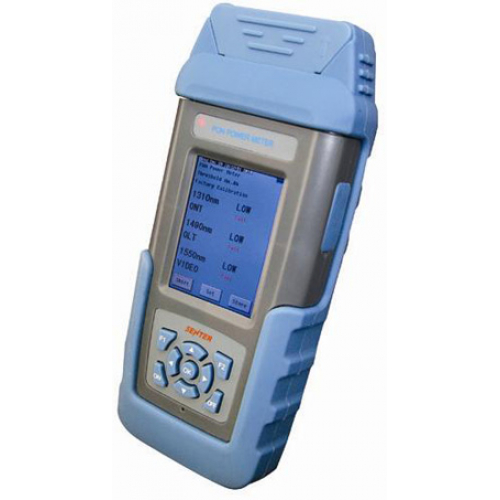

PON power meter ST805B-B with SC/PC connector

ST805B-B PON Power Meter is specially designed for PON network construction and maintenance which can be connected between OLT and ONT.
The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter.

3 wavelengths power of PON system synchronously: 1490nm, 1550nm, 1310nm
Test burst mode signal of 1310nm
SC/PC connector
32 digits CPU
True color touch screen
Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
Relative value choice and edit function
Save up to 1000 records and upload the records through USB to management software
Set the threshold value, upload data, and calibrate wavelength through management software
Auto off
Auto backlit off
Display the voltage of the battery
Power saving design (Low voltage self check and power off)
Real-time clock display
LCD: 320*240, True color touch screen
Battery: 7.4V 2000mAH rechargeable Lithium battery
Working temperature: -10～60℃
Storage Temperature: -25～70℃
Dimensions（mm） : 200*90*43
Weight(g): about 330
