4 порта (1G/10G) SFP+
-
20 порта 100M/1G SFP Port
-
4 порта GbE RJ45/SFP Combo Port
FGS-2628KX L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.
FGS-2628KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 4 GbE/10G SFP+ ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2628KX provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
FGS-2628KX is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.
Характеристики:
- 4 порта (1G/10G) SFP+
- 20 порта 100M/1G SFP Port
- 4 порта GbE RJ45/SFP Combo Port
- Console Port DB9
| Port Configuration | ||
| 100M/1G SFP Port | 20 | |
| GbE RJ45/SFP Combo Port | 4 | |
| 1G/10G SFP+ Port | 4 | |
| Console Port | DB9 | |
| Total Ports | 28 | |
| PoE Function | ||
| IEEE802.3at (PoE+ 30W) | -- | |
| IEEE802.3af (PoE 15.4W) | -- | |
| UPoE(60W) | -- | |
| PoE Port | -- | |
| Available PoE Power | -- | |
| HW Performance | ||
| Switching Bandwidth | 128Gbps | |
| Forwarding Performance | 95.232Mpps | |
| MAC Address | 32K | |
| Jumbo Frames | 10056 Bytes | |
| Environmental Specification | ||
| Operating Temperature | -20°C to 60°C | |
| Operating Humidity | 5 to 90% RH | |
| Storage Temperature | -40 to 85°C | |
| Storage Humidity | 5 to 90% RH | |
| Mechanical Specification | ||
| Dimensions (H) x (W) x (D) mm | 44 x 442 x 211 | |
| Weight | 3.1 Kg | |
| FAN Less | -- | |
| Power Source | ||
| AC Input | 100V-240V | |
| DC Input | 24V ~ 72V DC | |
| Dual Input | AC/DC | |
| Certifications | ||
| EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
| Certifications | CE/FCC Class A Others by Request |
|
| L2 Switching | ||
| Spanning Tree | IEEE802.1D (STP) | Y |
| IEEE802.1W (RSTP) | Y | |
| IEEE802.1S (MSTP) | Y | |
| VLAN | 802.1Q VLAN | Y |
| Port-Based | Y | |
| VLAN Entries | 4K | |
| Private VLAN | Y | |
| Voice VLAN | Y | |
| Guest VLAN | Y | |
| Q-in-Q | Y | |
| 802.1v Protocol VLAN | Y | |
| MAC-Based VLAN | Y | |
| IP Subnet-Based VLAN | Y | |
| IEEE 802.3ad LACP | Dynamic Trunk | Y |
| Static Trunk | Y | |
| GARP/GVRP | Y | |
| IGMP Snooping | Y | |
| MLD Snooping | Y | |
| Multicast VLAN Registration (MVR) | Y | |
| L3 Features | ||
| Static Route | Y | |
| DHCP Server | Y | |
| QoS Features | ||
| Class of Service | Port Based | Y |
| 802.1p | Y | |
| DSCP | Y | |
| TCP/UDP Port | Y | |
| Rate Limiting | Ingress | Y |
| Egress | Y | |
| Priority Queue Scheduling | WRR | Y |
| Strict Priority | Y | |
| Hardware Queues | 8 | |
| Security | ||
| ACLs | L2/L3/L4 | Y |
| IPv6 Support | Y | |
| Port Security (MAC-based) | Y | |
| IP Source Guard | Y | |
| Storm Control | Y | |
| RADIUS Authentication 802.1x | Y | |
| TACACS+ Authentication | Y | |
| HTTPs and SSL (Secured Web) | Y | |
| BPDU Guard | Y | |
| STP Root Guard | Y | |
| DHCP Snooping | Y | |
| Loop Protection | Y | |
| Management | ||
| DHCP | Client | Y |
| Relay | Y | |
| Option 66 | Y | |
| Option 67 | Y | |
| Option 82 | Y | |
| Event/Error Log | Syslog | Y |
| SMTP (RFC821) | Y | |
| Management Access Filtering | SNMP | Y |
| Web | Y | |
| Telnet | Y | |
| SSH | Y | |
| PoE Management | Scheduling | -- |
| Auto-Checking | -- | |
| Power Delay | -- | |
| SNMP (v1, v2c, v3) | Y | |
| RMON ( 1,2,3 & 9 Groups) | Y | |
| Software Upgrade | Y | |
| Configuration Export/Import | Y | |
| Port Mirroring | Y | |
| LLDP (IEEE802.1AB) | Y | |
| LLDP-MED (IEEE802.1AB) | Y | |
| CDP Aware | Y | |
| sFlow | Y | |
| IPv6 Management | Y | |
| NTP | Y | |
| Carrier Ethernet | ||
| SyncE | -- | |
| 1588v2 PTP | -- | |
| 1588v2 PTP (stratum3) | -- | |
| OAM (IEEE802.3ah) | -- | |
| CFM (IEEE802.1ag) | -- | |
| PM (ITU-T Y.1731) | -- | |
| ELPS (ITU-T G.8031) | -- | |
| ERPS (ITU-T G.8032) | -- | |
| Rapid-Ring | -- | |
| Device Management System | ||
| Device Management | Topology View | Y |
| Floor View | Y | |
| Map View | Y | |
| Dashboard | Y | |
| Traffic Monitoring | Y | |
| Cable Diagnostics | Y | |
| Switch2go | iOS Devices | Y |
| Android Devices | Y | |
| Find my Switch | iOS Devices | Y |
| Android Devices | Y | |
| Tech Support Online | Y | |

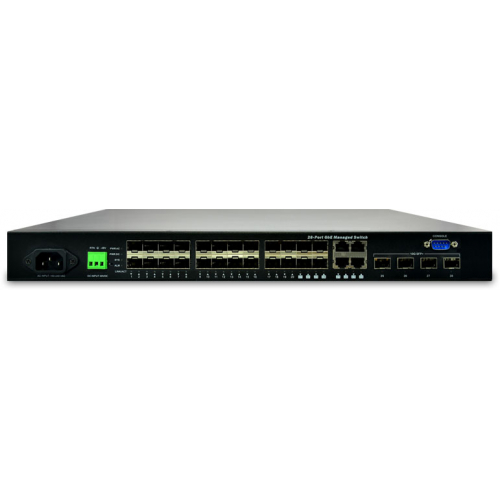

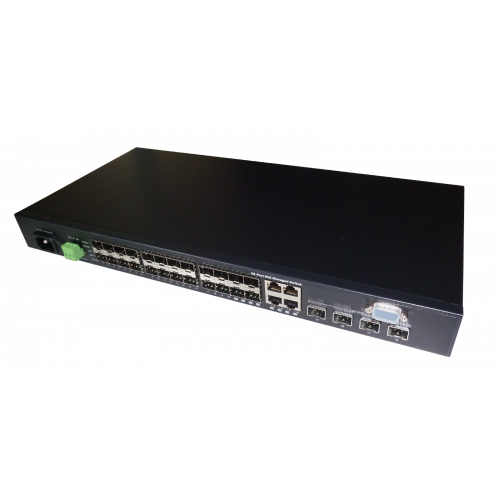

Оптичен суич 28-порта Layer 2 Plus FGS-2628KX (4-Port 10G SFP+)
- Код: 1172
- Модел: FGS-2628KX
- Наличност: Разпродаден
-
1,850.00лв.
- с ДДС: 2,220.00лв.
