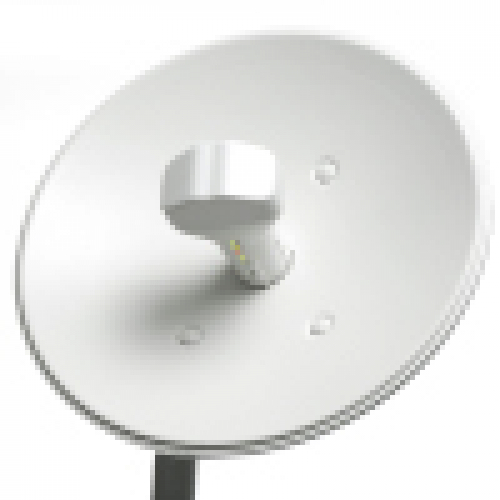

• InnerFeed Antenna Technology: NanoBridge M combines Ubiquiti’s Innerfeed and AirMax (MIMO TDMA Protocol) technologies to create a simple, yet extremely powerful and robust wireless unit capable of 150+Mbps real outdoor throughputand up to 20km+ range.
• Integrated AirMax Technology: Unlike standard WiFi protocol, Ubiquiti Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput & scalability compared to all other outdoor systems in its class.
• Intelligent QoS: Priority is given to voice/video for seamless access.
• Scalability: High capacity and scalability.
• Long Distance: Capable of high speed Carrier Class links
• Latency: Multiple features dramatically reduce noise.

Specifications:

• 5 GHz AirMax 2x2 Dish Antenna Feed
• Processor Specs Atheros MIPS 24KC, 400MHz
• Memory Information 32MB SDRAM, 8MB Flash
• Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
• Antenna Gain 22 dBi (M5-22)
• OUTPUT POWER: 23 dBm
• Operating Frequency Summary (MHz) 4920-6100
• Wireless Approvals FCC Part 15.247, IC RS210, CE
• RoHS Compliance
• Enclosure Characteristics Outdoor UV Stabilized Plastic
• Mounting Kit Pole Mounting Kit included
• Power Supply 24V, 1A POE Supply included
• Power Method Passive Power over Ethernet
• Max Power Consumption 5.5 Watts
• Operating Temperature -30C to 75C
• Operating Humidity 5 to 95% Condensing
• Shock and Vibration ETSI300-019-1.4
• Dimensions 326 mm diameter
• Weight 1,565 kg
