Всички индустриални суичове могат да бъдат доставени само с предварителна заявка и срок, който подлежи на договаряне. Свържете се с нас за повече информация.

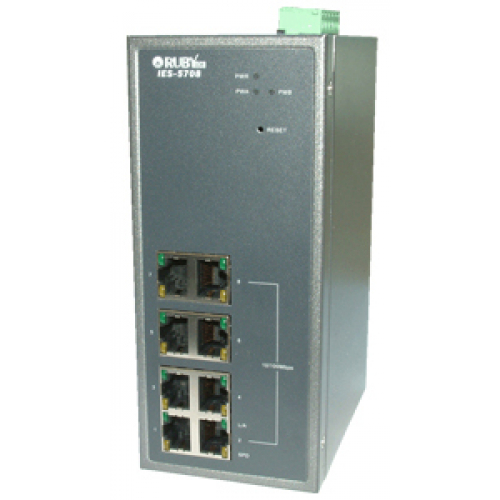

IES-5708 is an industrial unmanageable Fast Ethernet switch that supports 8 10/100Base-TX (RJ-45 connectors) ports. It is a standard switch that meets all IEEE 802.3/u/x Fast Ethernet specifications. IES-5708 has a built-in relay output function that sends alarm immediately when detecting power failure, allowing maintenance engineers to respond in no time.
Key Features
- 8 10/100Base-TX (RJ-45 connectors) ports
- -40C ~ 75C operating temperature
- Supports Full/Half Duplex, auto-negotiation
- Supports MDI/MDI-X on TP ports
- DIN-Rail/Wall mount ability
- Alarm contact
- Reverse power polarity protection
- Dual power inputs through removable terminal block, DC24V (12~48V)
- RoHS compliance
Hardware Specification
- Power Requirement - 24VDC(12~48V)
- Power Consumption - 4W
- Operating Temperature -40C to +75C
- Humidity - 5% to 95%
- Dimensions 66(W) x 152(H) x 102(D) mm
- Installation - DIN-Rail (Wall Mount: Optional)
- Alarm contact - Current carrying capacity 1A @ 24V
- EMI - Comply with FCC Part 15 Class A & CE Mark Approval
- Shock - IEC60068-2-27
- Freefall - IEC60068-2-32
- Vibration - IEC60068-2-6
- MTBF - 186600 hrs
- Casing IP30
Индустриален Fast Ethernet Суич IES-5708 - 8-Port Wide Temperature
- Код: 1217
- Модел: IES-5708
- Наличност: Доставя се по заявка
-
260.00лв.
- с ДДС: 312.00лв.
