The industrial switches can be delivered only by request and terms, subject to negotiation. Contact us for more information.

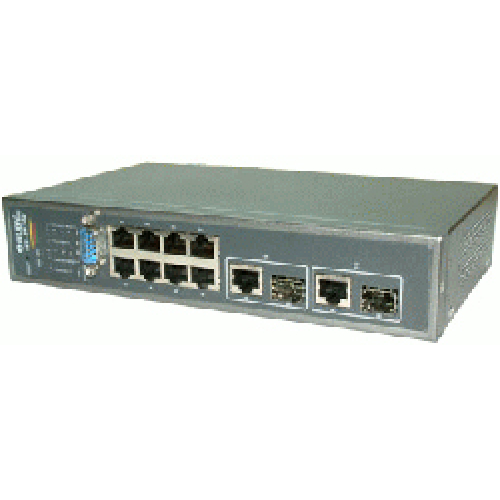

IES-2410C is an industrial Managed Fast Ethernet switch that supports SNMP, Web UI and CLI management interface and with 8 port 10/100Base-TX (RJ-45 connectors) and 2 Gigabit dual media (RJ-45/SFP) ports. It is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. In addition, the switch implements the QoS (Quality of Service), VLAN, Mac Filtering Policy, Port Mirror and full L2 protocols. It has a rich feature set suitable for streaming VoIP, video, and data traffics for multimedia applications. IES-2410C provides R-Ring technology to enable self-recover time in less than 300ms. In this switch, Port 9, 10 support two types of media - TP and SFP Fiber (LC, BiDi-LC…); both ports support 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-speed connection expansion.

Key Features

• 8 port 10/100Base-TX (RJ-45 connectors)
• 2 Gigabit dual media (RJ-45/SFP) ports
• QoS with four priority queues
• Port Mirroring
• Q-in-Q VLAN for performance & security
• Isolated Group, provides protection for certain ports
• Mac-based 802.3ad LACP with automatic link fail-over
• 802.1x Access Control improves network security
• 802.1d Compatible & 802.1w Rapid Spanning Tree & 802.1s Multiple Spanning Tree
• Broadcast/Multicast/Unknown-unicast Storm Control
• IP-MAC-Port Binding
• DHCP Snooping (Including DHCP Option 82)
• MVR
• IGMP Snooping
• IGMP Proxy

Hardware Specification

• Power Requirement - DC 24V (18~48V) (terminal block)
• Power Consumption - 11.6W
• Alarm Relay - 1A@24V
• Operating Temperature -10C to +60C
• Humidity - 44(W) x 220(H) x 130.5(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
