- Complies with IEEE 802.3-2005& CTC 2.1
- 8* EPON ports, 4* uplink ports
- Up to 1.25Gbps for upstream/ downstream speed
- Each OLT port supports 64 ONUs
- Complies with IEEE 802.3ah & CTC 2.1
- 8* EPON ports, 4* uplink ports
- Up to 1.25Gbps for upstream/ downstream speed
- Each OLT port supports 64 ONUs
- Maximum transfer distance up to 20Km
- Networking protocol supported: TCP/IP, ICMP, ARP, OSPF, PIM, etc.
- Complete Layer2/Layer3 features, supports Trunk protection/ Q-in-Q
- Advanced QoS functions: IP ToS, IEEE 802.1p priority (SP/WRR/SP+WRR)
- Intelligent Dynamic Bandwidth Allocation (DBA)
- Provides IEEE 802.1Q VLAN
- IGMP Snooping optimizes multicast applications
- Secure Access via Access Control List (ACL)
- Complies with Triple Churning Encryption/AES Encryption
- Supports 802.1x supplicant
- Supports upstream traffic classify and management through extended OAM
- Advanced management methods: OAM remote management, Web-based GUI, Console/ Telnet Command Line Interface, SSH v1/v2, ONU firmware remote upgrade
| Hardware | |
| Interface | 8 * EPON port, 4 * 10/100/1000Base-T and SFP combo uplink port 1 * NMI port |
| LED | RUN, ALM, PWR, SD(1-8 EPON, 1-4 Uplink), REG(1-8 EPON), NMI status |
| Power Supply | 100-240V AC/50-60Hz |
| Feature | |
| Hardware | Single Mode Fiber Cable SC Fiber Connecter Maximum Splits of ONU: 512 Upstream (ONU->OLT) Wavelength: 1310nm Downstream (OLT->ONU) Wavelength: 1490nm Reach: 20km for PX20/PX20+ |
| Software | Comply with IEEE 802.3-2005 Comply with CTC 2.1 Auto Discovery/Grant Allocation/Ranging/Report Handling Alarm Report Downstream Bandwidth Control by Policy ONU Remote Management Remote Diagnostic Peer to Peer Management Port Lock for Each ONU Performance Statistic Support ONU Firmware Remote Upgrade Comply with Triple Churning Encryption/AES Encryption Support Upstream Traffic Classify and Management through Extended OAM Support IGMP v1/v2 Proxy/Snooping Comply with Upstream Traffic Filter based on MAC DA/SA Support NMI Port Configuration Support Max Frame Length to 1536 Bytes Support Layer2 Features Secure Access via Access Control List (ACL) MAC/LOID Authentication |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 5%~95% RH non-condensing Storage Humidity: Less than 95% RH non-condensing |
| Package | 1 *EP8208 1 * Power Cord 2 * Rackmount Brackets and the Fittings |

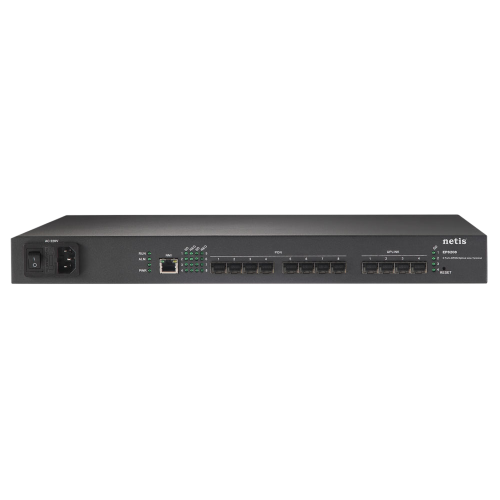

EP8208 - 8 Ports EPON Optical Line Terminal
- Код: 1276
- Модел: EP8208
- Наличност: Разпродаден
-
0.00лв.
- с ДДС: 0.00лв.
