• InnerFeed Antenna Technology: Ubiquiti revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of an antenna. AirGrid M HP combines Ubiquiti Innerfeed and AirMax (TDMA Protocol) technologies to create a simple, yet extremely powerful and robust wireless unit capable of 100+Mbps real outdoor throughput and up to 30km+ range. The low cost, hi-performance, robust all-in-one design, and light weight of AirGrid M HP make it extremely versatile and ideal in several different applications (see diagrams on right for some usage examples).
• Robust and Simple Design: AirGrid M HP was designed to be extremely robust to use. It can be easily oriented to use either vertical or horizontal polarization.To adjust polarization, just rotate the antenna in the desired polarization position and rotate the opening on the rear portion of the feed to face the ground (for optimal weatherproofing). Mechanical design provides complete weatherproof performance. Activity and signal strength LEDs provided for installers. Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments.

Specifications:

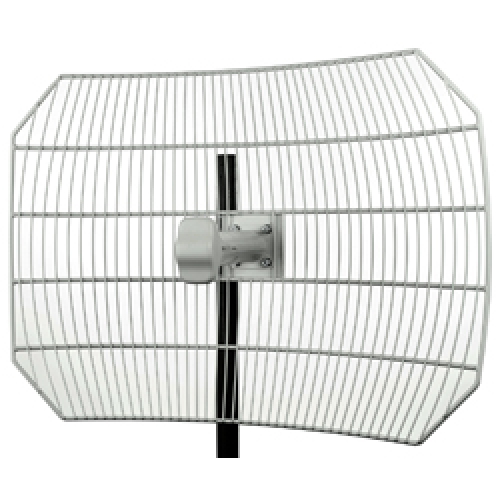

• AIRGRID M5 HP - 17x24 - 27dBi
• OUTPUT POWER: 25 dBm
• Processor Specs Atheros MIPS 24KC, 400MHz
• Memory Information 32MB SDRAM, 8MB Flash
• Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
• Wireless Approvals FCC Part 15.247, IC RS210, CE
• RoHS Compliance
• Enclosure Characteristics Outdoor UV Stabilized Plastic
• Mounting Kit Pole Mounting Kit included
• Power Supply 24V/0.5A POE Adapter (included)
• Max Power Consumption 3.0 Watts
• Power Method Passive Power over Ethernet
• Operating Temperature -30C to 75C
• Operating Humidity 5 to 95% Condensing
• Shock and Vibration ETSI300-019-1.4
• Weight FEED-0.2kg, MOUNT-0.65kg, 17x24 REFLECTOR- 1.9kg
