• Complies with IEEE 802.3ah & CTC 2.1
  • 4* EPON ports, 4* uplink ports
  • Up to 1.25Gbps for upstream/ downstream speed
  • Each OLT port supports 64 ONUs
  • Complies with IEEE 802.3ah & CTC 2.1
  • 4* EPON ports, 4* uplink ports
  • Up to 1.25Gbps for upstream/ downstream speed
  • Each OLT port supports 64 ONUs
  • Maximum transfer distance up to 20Km
  • Networking protocol supported: TCP/IP, ICMP, ARP, OSPF, PIM, etc.
  • Complete Layer2/Layer3 features, supports Trunk protection/ Q-in-Q
  • Advanced QoS functions: IP ToS, IEEE 802.1p priority (SP/WRR/SP+WRR)
  • Intelligent Dynamic Bandwidth Allocation (DBA)
  • Provides IEEE 802.1Q VLAN
  • IGMP Snooping optimizes multicast applications
  • Secure Access via Access Control List (ACL)
  • Complies with Triple Churning Encryption/AES Encryption
  • Supports 802.1x supplicant
  • Supports upstream traffic classify and management through extended OAM
  • Advanced management methods: OAM remote management, Web-based GUI, Console/ Telnet Command Line Interface, SSH v1/v2, ONU firmware remote upgrade
Hardware
Interface 4 * EPON port,
4 * 10/100/1000Base-T and SFP combo uplink port
1 * NMI port
LED RUN, ALM, PWR, SD(1-4 EPON, 1-4 Uplink), REG(1-4 EPON), NMI status
Power Supply 100-240V AC/50-60Hz
Feature
Hardware Single Mode Fiber Cable
SC Fiber Connecter
Maximum Splits of ONU: 512
Upstream (ONU->OLT) Wavelength: 1310nm
Downstream (OLT->ONU) Wavelength: 1490nm
Reach: 20km for PX20/PX20+
Software Comply with IEEE 802.3-2005
Comply with CTC 2.1
Auto Discovery/Grant Allocation/Ranging/Report Handling
Alarm Report
Downstream Bandwidth Control by Policy
ONU Remote Management
Remote Diagnostic
Peer to Peer Management
Port Lock for Each ONU
Performance Statistic
Support ONU Firmware Remote Upgrade
Comply with Triple Churning Encryption/AES Encryption
Support Upstream Traffic Classify and Management through Extended OAM
Support IGMP v1/v2 Proxy/Snooping
Comply with Upstream Traffic Filter based on MAC DA/SA
Support NMI Port Configuration
Support Max Frame Length to 1536 Bytes
Support Layer2 Features
Secure Access via Access Control List (ACL)
MAC/LOID Authentication
Others
Certification FCC, CE
Environment Operating Temperature: 0℃~40℃(32°F~104°F)
Storage Temperature: -40℃~70℃(-40°F~158°F)
Operating Humidity: 5%~95% RH non-condensing
Storage Humidity: Less than 95% RH non-condensing
Package 1 *EP8204
1 * Power Cord
2 * Rackmount Brackets and the Fittings

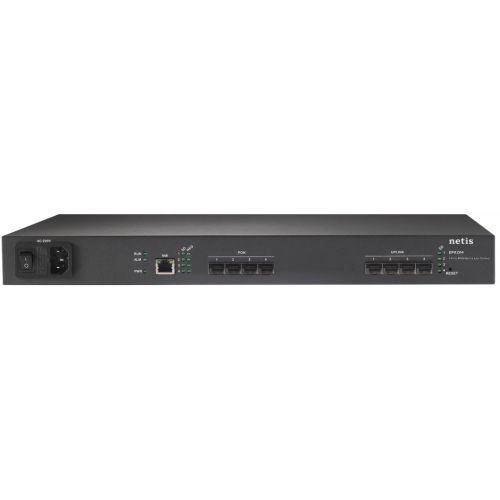

4 Ports EPON Optical Line Terminal - EP8204

  • Product Code: 1277
  • Product Model: EP8204
  • Availability: Out Of Stock
