Комплектът включва:
- 1 брой 10G SFP+ GigaStream BIDI-10G-SFP-20A - Tx1270nm/Rx1330nm 20km single-mode Transceiver with Digital Diagnostic and Monitoring (повече информация)
- 1 брой 10G SFP+ GigaStream BIDI-10G-SFP-20B - Tx1330nm/Rx1270nm 20km single-mode Transceiver with Digital Diagnostic and Monitoring (повече информация)
Applications:
IEEE 802.3ae-2002 = Standard 10G BASE LR = Data Rate 10.3125 GBd
*10G Fiber Channel = Standard 1200-SM-LC-L = Data Rate 10.51875 GBd
*8G Fiber Channel = Standard 800-SM-LC-L = Data Rate 8.5 GBd
*4G Fiber Channel = Standard 400-SM-LC-L = Data Rate 4.250 GBd
*2G Fiber Channel = Standard 200-SM-LC-L = Data Rate 2.125 GBd
*Модули поддържащи Fiber Channel се доставят с предварителна заявка.
- 1270nm / 1330нм DFB laser transmitter
- Distance up to 20km
- Power budget 12dB at least
- Multirate compliance for Ethernet and Fiber Channel
- Single 3.3V Power supply and TTL Logic Interface
- Sub watt power consumption: >1,5W
- Single LC Connector Interface
- *Digital Diagnostic and Monitoring (DDM)
- Hot Pluggable
- Compliant with MSA SFP+ Specification SFF-8431
- Compliant to SFP+ Mechanical MSA SFF-8432
- Compliant with IEEE 802.3ae 10GBASE-LR/LW
- Laser Class 1 IEC / CDRH compliant
- RoHS 6/6 compliant
- Operating Case Temperature: 0C to +70C
* Digital Diagnostic and Monitoring Ви дава възможност да следите в реално време най-важните параметри на оптичния линк - оптична изходна мощност, затихване по трасето, температура и захранващо напрежение на SFP+ модула.

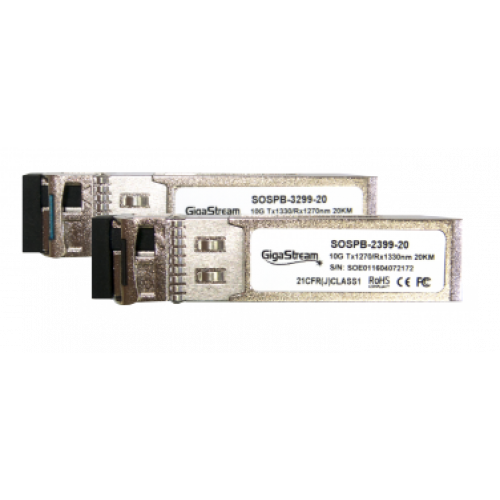

10G SFP+ Modules PACK GigaStream BIDI-10G-SFP-20 A и B - 20km single-mode Transceiver with DDM
- Brand: GigaStream
- Product Code: 1025
- Product Model: 10G-SFP+
- Availability: In Stock
-
96.00лв.
- Inc Tax: 115.20лв.
