Applications:
*10G Fiber Channel = Standard 1200-SM-LC-L = Data Rate 10.51875 GBd
*8G Fiber Channel = Standard 800-SM-LC-L = Data Rate 8.5 GBd
*4G Fiber Channel = Standard 400-SM-LC-L = Data Rate 4.250 GBd
*2G Fiber Channel = Standard 200-SM-LC-L = Data Rate 2.125 GBd
*Модули поддържащи Fiber Channel се доставят с предварителна заявка.
- 1310nm DFB laser transmitter
- Distance up to 20km
- Multirate compliance for Ethernet and Fiber Channel
- Single 3.3V Power supply and TTL Logic Interface
- Sub watt power consumption: 0.85W
- Duplex LC Connector Interface
- *Digital Diagnostic and Monitoring (DDM)
- Hot Pluggable
- Compliant with MSA SFP+ Specification SFF-8431
- Compliant to SFP+ Mechanical MSA SFF-8432
- Compliant with IEEE 802.3ae 10GBASE-LR/LW
- Laser Class 1 IEC / CDRH compliant
- RoHS 6/6 compliant
- Operating Case Temperature: 0C to +70C
* Digital Diagnostic and Monitoring DDM gives the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

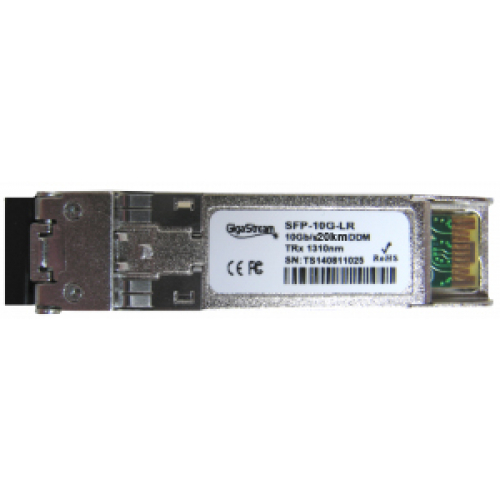

10G SFP+ GigaStream SFP-10G-LR - 1310nm 20km single-mode Transceiver with DDM
- Brand: GigaStream
- Product Code: 1023
- Product Model: 10G-SFP+
- Availability: Out Of Stock
-
32.22лв.
- Inc Tax: 38.67лв.
