Applications:

IEEE 802.3ae-2002 = Standard 10G BASE LR = Data Rate 10.3125 GBd

*10G Fiber Channel = Standard 1200-SM-LC-L = Data Rate 10.51875 GBd
*8G Fiber Channel = Standard 800-SM-LC-L = Data Rate 8.5 GBd
*4G Fiber Channel = Standard 400-SM-LC-L = Data Rate 4.250 GBd
*2G Fiber Channel = Standard 200-SM-LC-L = Data Rate 2.125 GBd
_{*Модули поддържащи Fiber Channel се доставят с предварителна заявка.}

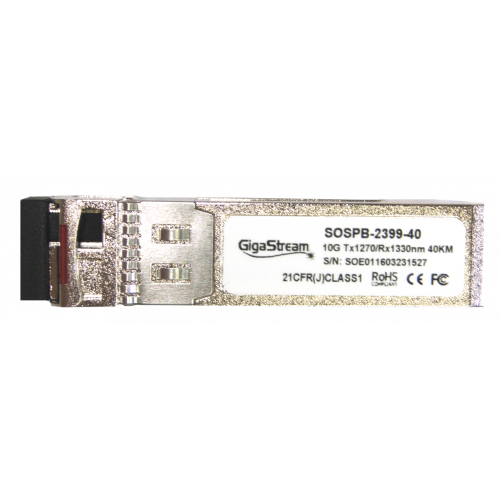

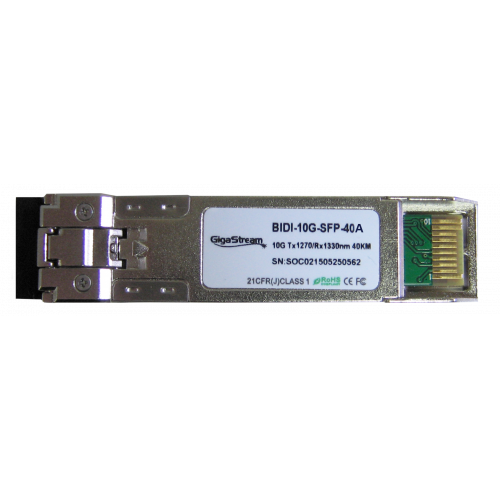

• 1270nm DFB laser transmitter (1330nm receiver)
• Distance up to 40km
• Power budget 16dB at least
• Multirate compliance for Ethernet and Fiber Channel
• Single 3.3V Power supply and TTL Logic Interface
• Sub watt power consumption: >1,5W
• Single LC Connector Interface
• *Digital Diagnostic and Monitoring (DDM)
• Hot Pluggable
• Compliant with MSA SFP+ Specification SFF-8431
• Compliant to SFP+ Mechanical MSA SFF-8432
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Laser Class 1 IEC / CDRH compliant
• RoHS 6/6 compliant
• Operating Case Temperature: 0C to +70C

* Digital Diagnostic and Monitoring Ви дава възможност да следите в реално време най-важните параметри на оптичния линк - оптична изходна мощност, затихване по трасето, температура и захранващо напрежение на SFP+ модула.
